Analysis of Young's Modulus (Young)
Los graficos interactivos tardan mucho en cargar!
Key Findings and Interpretation
The regression model for Young's Modulus is statistically significant (P-Value = 0.000) and provides a strong fit for the experimental data, explaining 74.25% of the variability (R-sq). This indicates that the mechanical properties of the material are well-predicted by the formulation components.
The most dominant factor influencing the material's stiffness is Alginate, which has a very large, positive linear effect. The interaction between Alginate*Calcium (P=0.003) is also highly significant, reinforcing the critical role of Alginate and its cross-linking with Calcium in determining the mechanical strength. The interaction between Alginate*NPs is borderline significant (P=0.051), suggesting a potential secondary mechanism affecting the modulus. A key strength of this model is the non-significant Lack-of-Fit (P=0.953), which provides strong evidence that the model is well-specified and accurately captures the component relationships.
Regression Equation
The relationship between the components and the Young's Modulus response is described by the following equation, where the process variable Calcium is coded (-1 for 1%, +1 for 5%):
Model Goodness-of-Fit
The statistical model provides a strong and reliable fit to the experimental data. The key metrics from the "Model Summary" table are:
- R-sq = 74.25%: The model explains approximately 74% of the variation in the Young's Modulus data, indicating a strong relationship.
- R-sq(adj) = 70.22%: The adjusted R-squared is high and reasonably close to the R-squared value, suggesting the model is not overfitted.
- R-sq(pred) = 64.58%: The predicted R-squared indicates a good capability for predicting new observations.
- S = 0.135720: The standard error of the regression is at an acceptable level for the response range.
The overall regression model is highly significant (P-Value = 0.000), and the non-significant lack-of-fit test (P=0.953) greatly increases confidence in the model's predictive accuracy.
Model Summary: Stepwise Selection
The following table shows the stepwise selection process for the final model. The last row, highlighted, represents the chosen model with the best combination of explanatory and predictive power.
| Step | S | R-sq (%) | R-sq(adj) (%) | R-sq(pred) (%) |
|---|---|---|---|---|
| 1 | 0.158520 | 62.67 | 59.38 | 53.76 |
| 2 | 0.141954 | 70.94 | 67.42 | 61.42 |
| 3 | 0.135720 | 74.25 | 70.22 | 64.58 |
Model Diagnostic Plots
To ensure the validity of the statistical model, a series of diagnostic plots were generated. These plots help confirm that the assumptions of the regression analysis are met. Below is a guide to interpreting each plot:
- Normal Probability Plot: This plot checks if the residuals are normally distributed. The goal is to see our experimental points fall closely to the theoretical straight line. Significant deviations may indicate that the assumption of normality is not met.
- Residuals vs Fits: This plot is used to detect non-constant variance, missing terms, or outliers. The points should be randomly scattered around the horizontal line at zero. Any clear pattern would suggest a problem with the model.
- Histogram of Residuals: This provides another visual check for the normality of residuals. The distribution should be roughly symmetric and bell-shaped, centered around zero.
- Residuals vs Order: This plot helps to verify that the residuals are independent of one another. The data points should show no discernible trend or pattern. Any systematic pattern could suggest that the order of the experiments influenced the results.
Pareto Chart of Effects
The Pareto chart visually ranks the importance of each factor and interaction on the Young's Modulus response. The red line indicates the threshold for statistical significance (α=0.05). Effects that cross this line are considered the most influential drivers of the process.

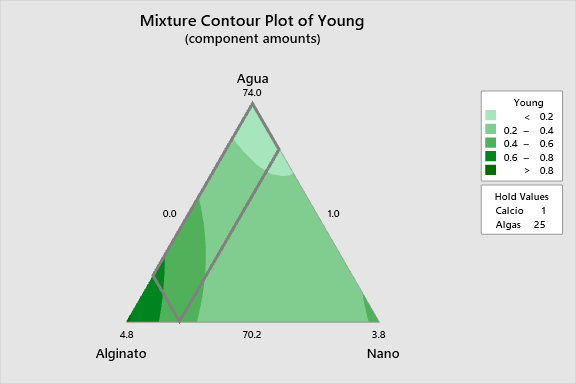

2D Contour Plots
The following interactive 2D contour plots show how pairs of variables influence Young's Modulus while holding the other factors at constant levels. These maps are essential for identifying optimal regions in the formulation space.
3D Surface Plots
These interactive 3D plots provide an intuitive view of the response surface. Each colored surface represents the predicted Young's Modulus response based on the model for a specific combination of held factors.
Overlaid on the surfaces are the data points from the actual experiments. The solid dots (●) represent the actual, measured Young's Modulus values, while the crosses (+) show the values predicted by the model for those same experimental conditions. The vertical distance between a dot and its corresponding cross represents the residual error for that point. A good model will have these points lying close to the surface, indicating small errors.
